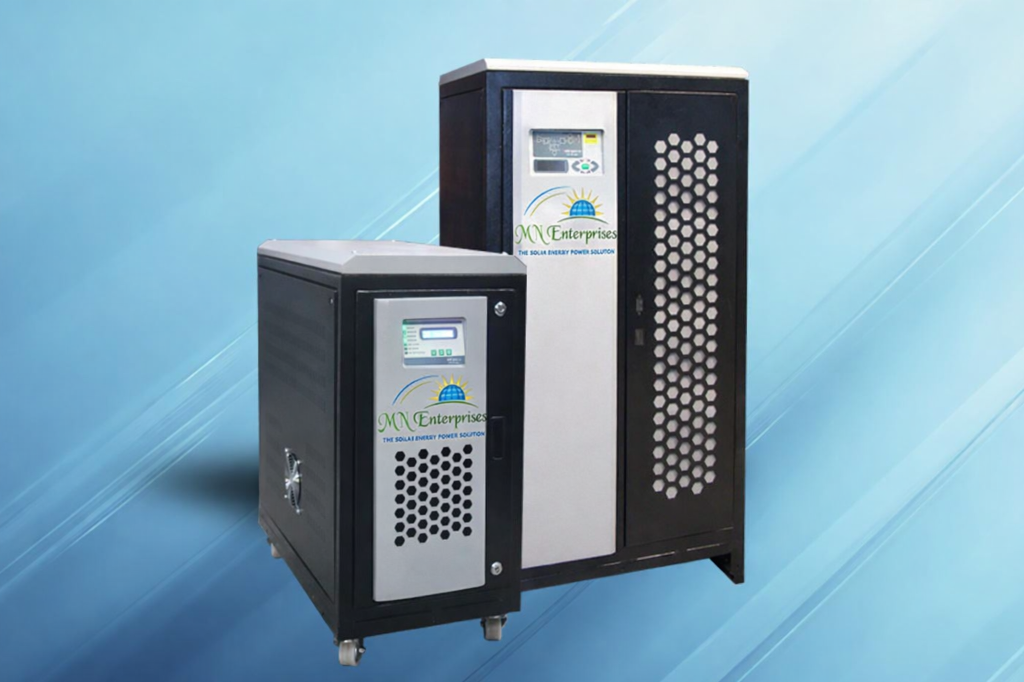

| Capacity Ratings (1 Phase In - 1 Phase Out) | ||||||
|---|---|---|---|---|---|---|
| Rating (KVA) | 1 KVA | 2 KVA | 3 KVA | 6 KVA | 7.5 KVA | 10 KVA |
| DC Bus Voltage | 36 VDC | 96 VDC | 96 VDC | 180/240 VDC | 180 VDC | 180/360 VDC |
| Capacity Ratings (3 Phase In - 1 Phase Out) | |||||
|---|---|---|---|---|---|
| Rating (KVA) | 10 KVA | 15 KVA | 20 KVA | 30 KVA | 40 KVA |
| DC Bus Voltage | 180 VDC | 180 VDC | 180 VDC | 180 VDC | 180 VDC |
| Capacity Ratings (3 Phase In - 3 Phase Out) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Rating (KVA) | 15 | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 150 |
| DC Bus (VDC) | 360 VDC | 384 VDC | |||||||
| Input Technology | |
|---|---|
| Technology | Double Conversion With High Freq-PWM-IGBT |
| Input Voltage | 230V 1P / 415V 3P&N |
| Input Window | 230V +/- 15%, 415V +/- 15% |
| Input Frequency | 50Hz +/- 5% |
| Input PFC with 100% Load | > 0.92 for 1P And > 0.85 for 3p |
| Inverter Output | |
|---|---|
| Type | IGBT base PWM With Pure Sine Wave |
| Nominal Output Voltage | 230V for 1p / 415V for 3p |
| Regulation | +/- 2% |
| Frequency | 50Hz +/- 0.5Hz |
| Waveform | Pure Sine Wave With Waveform Feedback Correction |
| Transient Response | Remains Within +/- 1% & Recover to Normal Within 20msec |
| Overload Capacity | 100% Continuous / 125% for 1 minute |
| Efficiency | 95% |
| General Specifications | |
|---|---|
| Crest Factor | 3:1 |
| Isolation | Inbuilt Galvanic Isolation Transformer |
| Bypass Facility | Manual/Static (optional) |
| Alarm | Battery low / Overloaded / Over Voltage / Under Voltage / Trip |
| LCD Display | Charger On / Inverter on / Battery low / Overload / UV / OV |
| Enclosure Type | IP-20 |
| Cooling System | Forced Air |
| Acoustic Noise Level | < 60db |
| Ambient Temp | 0-40 deg CG |
| Humidity | Up to 95% RH non Condensing |
| Software & Interface | Optional |
